QT PRO Data Center Service

QT PRO Data Center Service Menu

Basic service: Housing service

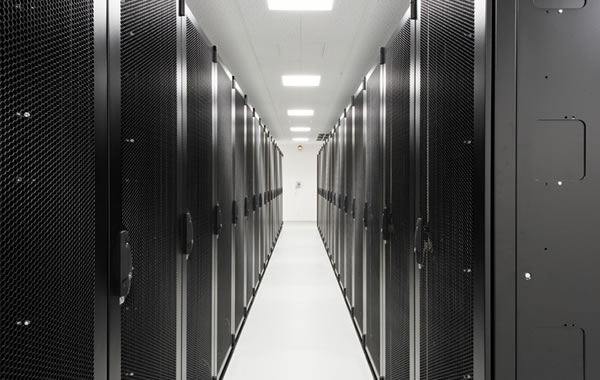

Customers’ information systems are housed in lockable dedicated racks. QTnet offers a housing service which can be adapted to match your scale and budget. Customers can select from full racks designed for highly-integrated equipment and devices such as blade servers, and half racks and quarter racks for smaller housing requirements.

QT PRO Data Center Service - Diagram of housing service
Diagram of housing service
  • Type Full rack Half rack
    (1/2)
    Quarter rack
    (1/4)
    Size QT PRO Data Center Service - Full rack dimensions (QD1) QT PRO Data Center Service - Half rack dimensions (QD1, 2, 3) QT PRO Data Center Service - Quarter rack dimensions (QD1, 2, 3)
    19-inch (conforms to EIA standards)
    Equipment/device housing capacity 40U 19U 10U
    Equipment/devices housing weight 500 kg or less 200 kg or less 100 kg or less
    Permissible power consumption 4kVA
    6kVA (max.)
    2kVA (max.) 1kVA (max.)
  • Type Full rack Half rack
    (1/2)
    Quarter rack
    (1/4)
    Size QT PRO Data Center Service - Full rack dimensions (QD2, 3) QT PRO Data Center Service - Half rack dimensions (QD1, 2, 3) QT PRO Data Center Service - Quarter rack dimensions (QD1, 2, 3)
    19-inch (conforms to EIA standards)
    Equipment/devices housing capacity 46U 22U 10U
    Equipment/devices housing weight 1,000 kg or less 500 kg or less 250 kg or less
    Permissible power consumption 6kVA
    20kVA (max.)
    3kVA (max.) 2kVA (max.)
  • Type Full rack Half rack
    (1/2)
    Quarter rack
    (1/4)
    Size QT PRO Data Center Service - Full rack dimensions (QD2, 3) QT PRO Data Center Service - Half rack dimensions (QD1, 2, 3) QT PRO Data Center Service - Quarter rack dimensions (QD1, 2, 3)
    19-inch (conforms to EIA standards)
    Equipment/devices housing capacity 46U 22U 10U
    Equipment/devices housing weight 1,000 kg or less 500 kg or less 250 kg or less
    Permissible power consumption 8kVA
    30kVA (max.)
    4kVA (max.) 2kVA (max.)

Basic service: Collocation service

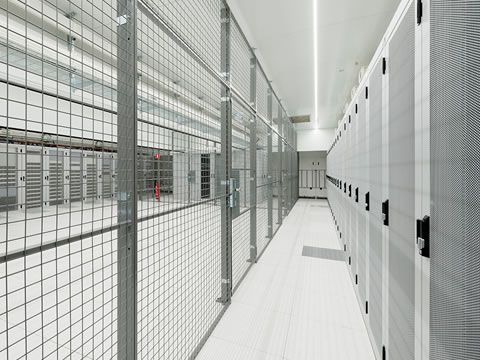

Server rooms are partially separated with cages, which can be used by customers as dedicated work spaces. This service is ideal for portable racks, installing stand-alone storage systems or servers that cannot be housed in 19-inch racks, and large-scale systems that cannot be accommodated with the housing service, allowing equipment and devices to be arranged freely.

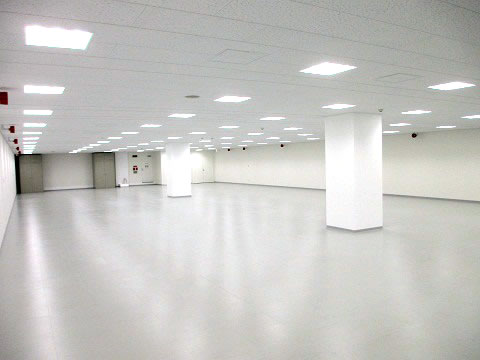

QT PRO Data Center Service - Diagram of server room
Diagram of server room
QT PRO Data Center Service - Diagram of colocation service
Diagram of colocation service
Service features
The space provided is in 1 m2 units. In addition to portable racks, customers may also use racks provided by QTnet.

Option service: Managed services

These include operation monitoring and agent services, as well as network services for customers using QTnet data centers.

Operation monitoring service

QTnet has put together a comprehensive lineup of operation monitoring services including Ping monitoring, visual checks, and process monitoring, and full-time technicians are on hand to monitor operation at customers’ equipment and devices round-the clock, 24h365 days a year.

Item Description
Ping monitoring service This service involves monitoring the port state of customers’ server equipment/devices and network equipment, and notifying customers when failures occur.
LED check service This service involves carrying out visual checks of LEDs, etc., and turning the power to equipment and devices ON and OFF as instructed for customers’ server equipment/devices and network equipment.
Process monitoring service This service involves monitoring the state of important processes running on customers’ servers, and notifying customers in the event that stoppages or abnormalities are detected.
Resource monitoring service This service involves monitoring the usage status of resources on servers for customers’ server equipment and devices. Customers are notified when preset warning thresholds are breached.
syslog monitoring service This service involves monitoring syslog files generated by customers’ server equipment/devices and network equipment. Customers are notified when pre-registered messages are output.
Application log
monitoring service
This service involves monitoring log files generated by applications running on customers’ servers. Customers are notified when pre-registered messages are output.
URL monitoring service This service involves monitoring responses from customers’ websites (URLs). Customers are notified when warning thresholds for which the URL response time is set beforehand are breached.
Internet service
response monitoring service
This service involves monitoring responses for Internet services (HTTP, SMTP, DNS, etc.) running on customers’ servers. Customers are notified when access to the relevant Internet services is no longer possible.

Agent service

This service involves the running of servers and network equipment on behalf of the customer by dedicated data center staff.

Tasks such as job execution and command input are carried out when periodically instructed to do so by customers in accordance with a predetermined schedule. These tasks are carried out on behalf of customers based on service procedure manuals created after consultation with the customer. Furthermore, dedicated data center staff also carry out tasks from running jobs to outputting and dispatching report slips on behalf of customers, and store data in fireproof safes.

Option service: Network services

QTnet offers a wide range of large-capacity, high-quality network services. All backbones employ a redundancy configuration. Furthermore, QTnet data centers are multi-carrier centers, and customers are free to select communication lines which can be laid directly to the centers. By doing so, customers are able to construct systems with a variety of network configurations.

Network services for data centers

QT PRO Location Free service

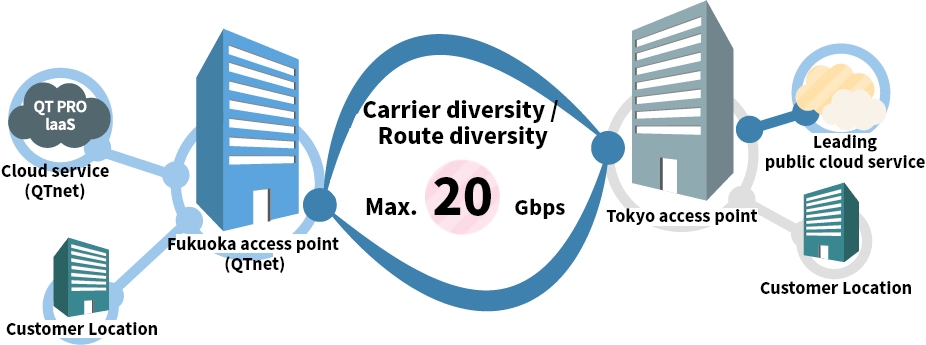

QT PRO Location Free (QLF service) is designed for customers using QTnet data centers, and is a high-speed, large-capacity inter-base network service linking QTnet data centers with an access point in Tokyo.

QT PRO Data Center Service - Diagram of location free service

Merits of using services

01 High-speed, large-capacity, highly-secure network

QTnet’s network is a closed network which directly connects access points in Fukuoka and Tokyo with a dedicated high-speed, large-capacity communication line, and is ideal for networks between systems which demand high security.

02 Direct connection
to public clouds

Customers can connect directly to large public clouds by connecting to QTnet’s Fukuoka access point from their own location.

03 One-stop service

QTnet offers a one-stop service from the proposal stage to network procurement, access point construction and operation, completely eliminating the need for troublesome procedures necessary when dealing with multiple companies.

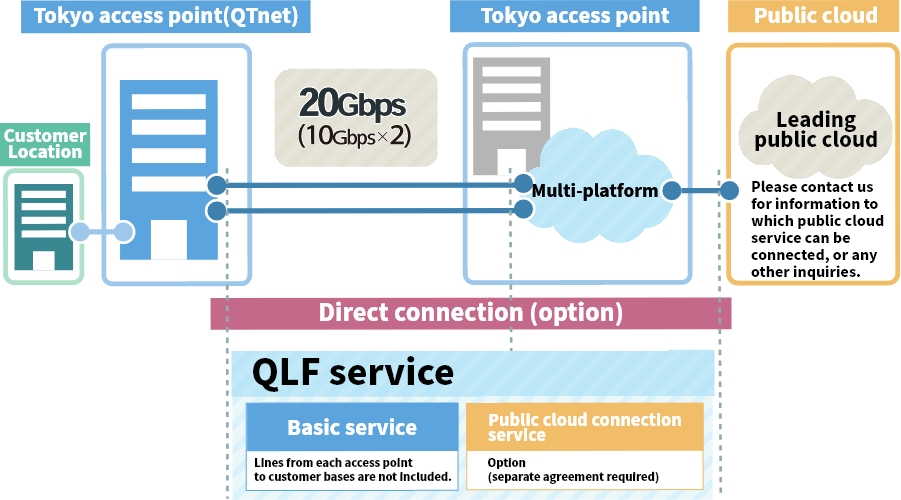

Service overview diagram

QTnet’s network is a closed network with dedicated lines offering speeds of up to 20 Gbps. Customers can use the network by combining service class (single/dual) and bandwidth to meet their system requirements. A connection to Leading public cloud can also be established using an option.

QT PRO Location Free - Service overview diagram

Service menu

Item Details
Service details L2 dedicated line service*
Line configuration Tokyo to Fukuoka, two-route configuration with Carrier diversity and Route diversity (10 Gbps x 2 lines)
Service class Single/dual
Available bandwidth 10 Mbps to 100 Mbps (10 Mbps increments), 200 Mbps, 500 Mbps, 1 Gbps

* Communication lines from Tokyo and Fukuoka access points to customer bases are not included with this service.

Option service: BCP office

This service provides a BCP-compatible office for customers using QTnet data centers.

* Conference rooms are available in some data centers.
* Please be aware that we may not be able to meet your request depending on the office scale.

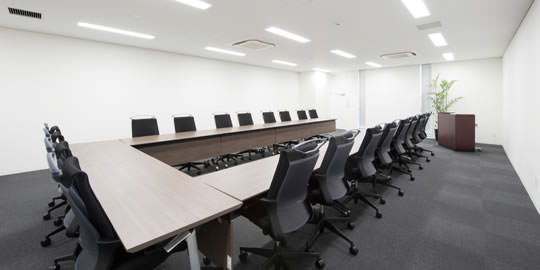

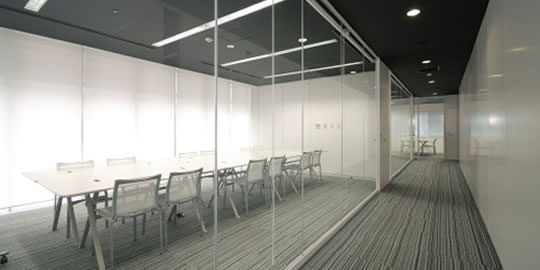

QT PRO Data Center Service - BCP office for reference
QT PRO Data Center Service - BCP office for reference

BCP office for reference

Inquiries

Please do not hesitate to contact us for details.

From small and medium-sized businesses to large corporations, we provide optimum services tailored to your company’s needs.
Please do not hesitate to contact us for details on information such as services and fees.
